2 MODULAR (2 + kitchenette)

Ground floor consisting of 2 modules ( 9 x 2,5m / ) with total area of 45m² / 484.3ft²

Example of the 2 module interior.


2 -Modular house

Below please find an example of the layout of a 2 modular house. This house can be tailor made. By clicking this picture you can enlarge the picture.


Description of the materials needed to build this house:

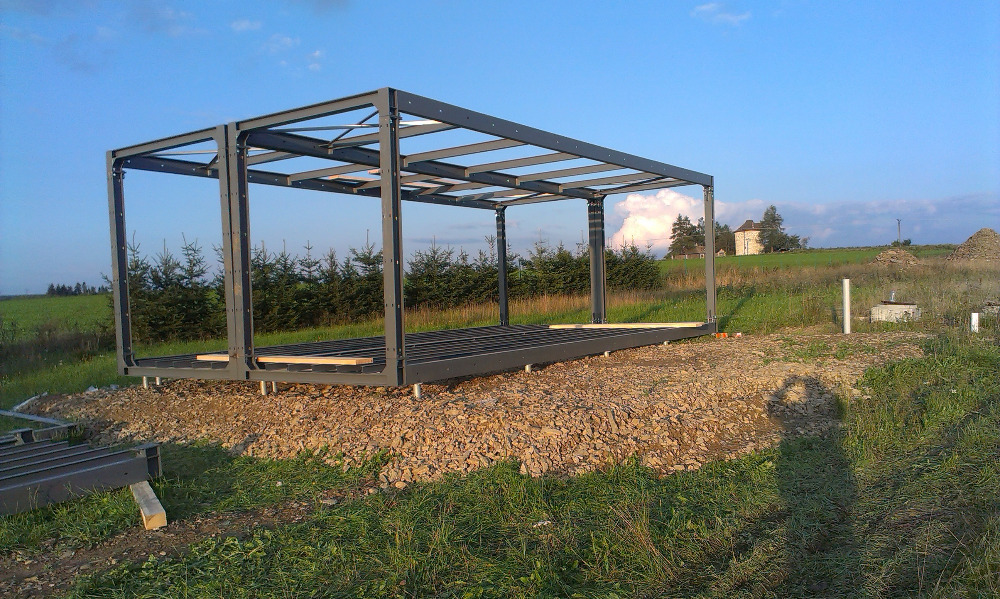

The supporting structure -

Outer dimensions of the assembled steel structure: (Width x Length x Height):

5 x 9 x 3.4 (m), internal height between the supporting profiles is 3 m.

Ground floor and ceiling is 9 x 5 m = 45m2.


Roof, ceiling -

flat roof (slope of about 7%) consisting of K-control panels 140 mm thick, galvanised tin roof, total size 6m x 10m. Ceiling - air gap between the K-control panels and drywall ceiling, might be used foam insulation. To reinforce the ceiling and roof, treated joists are used; height is 120 mm and 80 mm.


Floor -

tin sheets, EPS insulation -thickness of 200 mm, treated joists 80 mm, decking 22 mm, OSB boards or waterproof plywood, then floating floor PVC flooring or wooden floor.

Total floor area is ​​45m2.


Sheathing -

Entrance glazed door from the terrace 1.5 x 2.89, from the hall 0.9 x 2.89 m, glazed with ventilation on the top at the height of 0.4 m height the space to the ceiling is 5cm, the floor needs 6cm, therefore clear height for glassy parts and the door is 2.89 meters.

Glass walls in the bedroom 2.2 (W) x 2.89 (H) m, glazed terrace 2 x (2.5 x 2.89) m, a window into the hall 3.2 (W) x 1.2 (H) m. The outer sheathing ng uses PUR panels with a thickness of 10 cm, internal sheathing uses mineral wool 8 cm thick, vapour barrier, drywall. Panelling and glass panels will be outside attached to the steel frame (L profile) adapted for holding the panels and glass panels at the bottom, and on sides and on top treated wooden beams and planks will be used.


Materials needed for wall sheathing:

PUR panels:

Side from the terrace: 2.7 x 3.4 m (9.18 square meters) Hall from the MAIN ENTRANCE: 4.3 x 3.4 m (14.62 square meters), from the windows to the HALL: 27.5 m2, from the bedroom window: 3 x 3.4 m (10.2 square meters). Glass bathroom window, top of the window can be open. Total external sheathing using PUR panels 100 mm thick is 70 m2.

The same area, 70 m2 is needed to use mineral wool 80 mm, and for vapour barrier and drywall.


5, The internal walls -

100mm drywall to be able to hang cabinets - reinforced on the side of the living room with drywall, 18 mm OSB, total 14m2.

The area of drywalled walls 14 + 14 = 28 m2 + 9.6 m2, total of 37.6m2, plus 70 m2 for the interior walls, plus ceiling 45m2, DRYWALL Total 153 m2. The door 90mm. Triple glazing or double glass- depends on the client.


Example of the floor plan layout with a terrace.

LEGEND:

LOŽNICE = bedroom            PŘEDSIŇ - HALL
OBYTNÁ H = open space    ŠAT - dressing room

KOUP = bathroom
